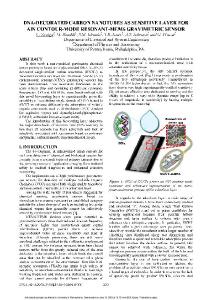

DNA-Decorated Carbon Nanotubes as Sensitive Layer for AlN Contour-Mode Resonant-MEMS Gravimetric Sensor

Loading...
Thumbnail Image
Penn collection
Departmental Papers (ESE)
Degree type
Discipline
Subject
carbon nanotubes
chemical sensors
density measurement
DNA
carbon nanotubes
contour-mode resonant-MEMS gravimetric sensor
nano-enabled gravimetric chemical sensor prototype
sensitive layer
Funder
Grant number
License
Copyright date
Distributor
Related resources
Contributor
Abstract

In this work a nano-enabled gravimetric chemical sensor prototype based on single-stranded DNA (ss-DNA) decorated single-walled carbon nanotubes (SWNT) as nano-functionalization layer for Aluminun Nitride (AIN) contour-mode resonant-MEMS gravimetric sensors has been demonstrated. Two resonators fabricated on the same silicon chip and operating at different resonance frequencies, 287 and 450 MHz, were functionalized with this novel bio-coating layer to experimentally prove the capability of two distinct single strands of DNA bound to SWNT to enhance differently the adsorption of volatile organic compounds such as dinitroluene (DNT, simulant for explosive vapor) and dymethyl-methylphosphonate (DMMP, a simulant for nerve agent sarin). The introduction of this bio-coating layer addresses the major drawbacks of recovery time (50% recovery in less than 29 seconds has been achieved) and lack of selectivity associated with gas sensor based on polymers and pristine carbon nanotube functionalization layers.

Advisor
Date of presentation
2009-01-25
Conference name
Departmental Papers (ESE)
Conference dates
2023-05-17T03:00:20.000
Conference location
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Copyright 2009 IEEE. Reprinted from: Zuniga, C.; Rinaldi, M.; Khamis, S.M.; Jones, T.S.; Johnson, A.T.; Piazza, G., "DNA-Decorated Carbon Nanotubes as Sensitive Layer for AlN Contour-Mode Resonant-MEMS Gravimetric Sensor," Micro Electro Mechanical Systems, 2009. MEMS 2009. IEEE 22nd International Conference on , vol., no., pp.320-323, 25-29 Jan. 2009 URL: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=4805383&isnumber=4805295 This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to pubs-permissions@ieee.org. By choosing to view this document, you agree to all provisions of the copyright laws protecting it.
