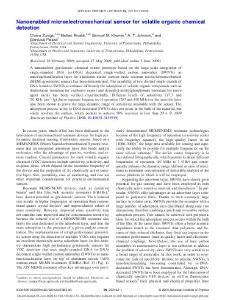

Nanoenabled microelectromechanical sensor for volatile organic chemical detection
Penn collection
Degree type
Discipline
Subject
microsensors
chemical sensors
carbon nanotubes
DNA
selectivity
Acoustics, Dynamics, and Controls
Biological Engineering
Electrical and Electronics
Electro-Mechanical Systems
Electronic Devices and Semiconductor Manufacturing
Nanoscience and Nanotechnology
Nanotechnology Fabrication
Funder
Grant number
License
Copyright date
Distributor
Related resources
Contributor
Abstract
A nanoenabled gravimetric chemical sensor prototype based on the large scale integration of single-stranded DNA (ss-DNA) decorated single-walled carbon nanotubes (SWNTs) as nanofunctionalization layer for aluminum nitride contour-mode resonant microelectromechanical (MEM) gravimetric sensors has been demonstrated. The capability of two distinct single strands of DNA bound to SWNTs to enhance differently the adsorption of volatile organic compounds such as dinitroluene (simulant for explosive vapor) and dymethyl-methylphosphonate (simulant for nerve agent sarin) has been verified experimentally. Different levels of sensitivity (17.3 and 28 KHz µm^2/fg) due to separate frequencies of operation (287 and 450 MHz) on the same die have also been shown to prove the large dynamic range of sensitivity attainable with the sensor. The adsorption process in the ss-DNA decorated SWNTs does not occur in the bulk of the material, but solely involves the surface, which permits to achieve 50% recovery in less than 29 s.
