Local Matching of Surfaces Using Critical Points

Loading...

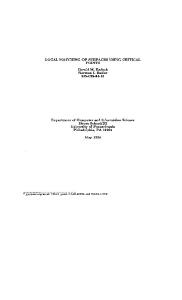

Thumbnail Image
Penn collection
Technical Reports (CIS)
Degree type
Discipline
Subject
Computer Engineering
Computer Sciences
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Radack, Gerald
Contributor
Abstract

The local matching problem on surfaces is: Given a pair of oriented surfaces in 3-space, find subsurfaces that are identical or complementary in shape. A heuristic method is presented for local matching that is intended for use on complex curved surfaces (rather than such surfaces as as cubes and cylinders). The method proceeds as follows: (1) Find a small set of points-called "critical points" -on the two surfaces with the property that if p is a critical point and p matches q, then q is also a critical point. The critical points are taken to be local extrema of either Gaussian or mean curvature. (2) Construct a rotation invariant representation around each critical point by intersecting the surface with spheres of standard radius centered around the critical point. For each of the resulting curves of intersection, compute a "distance map" function equal to the distance from a point on the curve to the center of gravity of the curve as a. function of arc length (normalized so that the domain of the function is the interval [0,1]). Cll the set of contours for a given critical point a "distance profile." (3) Match distance profiles by computing a "correlation" between corresponding distance contours. (4) Use maximal compatible subsets of the set of matching profiles to induce a transformation that maps corresponding critical points together, then use a cellular spatial partitioning technique to find all points on each surface that are within a tolerance of the other surface.

Advisor
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
1984-05-01
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
University of Pennsylvania Department of Computer and Information Science Technical Report No. MS-CIS-84-13.
