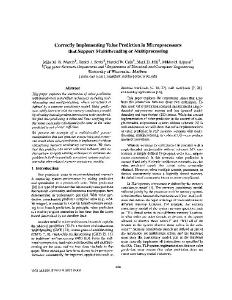

Correctly Implementing Value Prediction in Microprocessors that Support Multithreading or Multiprocessing

Loading...
Thumbnail Image
Penn collection
Departmental Papers (CIS)
Degree type
Discipline
Subject
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Sorin, Daniel J
Cain, Harold W
Hill, Mark D
Lipasti, Mikko H
Contributor
Abstract

This paper explores the interaction of value prediction with thread-level parallelism techniques, including multithreading and multiprocessing, where correctness is defined by a memory consistency model. Value prediction subtly interacts with the memory consistency model by allowing data dependent instructions to be reordered. We find that predicting a value and later verifying that the value eventually calculated is the same as the value predicted is not always sufficient. We present an example of a multithreaded pointer manipulation that can generate a surprising and erroneous result when value prediction is implemented without considering memory consistency correctness. We show that this problem can occur with real software, and we discuss how to apply existing techniques to eliminate the problem in both sequentially consistent systems and systems that obey relaxed memory consistency models.

Advisor
Date of presentation
2001-12-01
Conference name
Departmental Papers (CIS)
Conference dates
2023-05-17T00:29:51.000
Conference location
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Copyright 2001 IEEE. Reprinted from Proceedings of the 34th ACM/IEEE International Symposium on Microarchitecture, 2001. MICRO-34, December 2001, pages 328-337. This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to pubs-permissions@ieee.org. By choosing to view this document, you agree to all provisions of the copyright laws protecting it. NOTE: At the time of publication, author Milo Martin was affiliated with the University of Wisconsin. Currently (March 2007), he is a faculty member in the Department of Computer and Information Science at the University of Pennsylvania.
