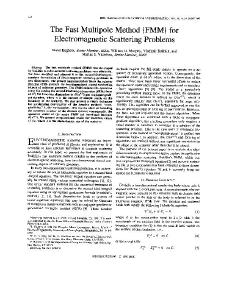

The Fast Multipole Method (FMM) for Electromagnetic Scattering Problems

Loading...
Thumbnail Image
Penn collection
Departmental Papers (ESE)
Degree type
Discipline
Subject
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Murphy, William D.
Rokhlin, Vladimir
Vassiliou, Marius S.
Contributor
Abstract

The fast multipole method (FMM) was developed by Rokhlin to solve acoustic scattering problems very efficiently. We have modified and adapted it to the second-kind-integral-equation formulation of electromagnetic scattering problems in two dimensions. The present implementation treats the exterior Dirichlet (TM) problem for two-dimensional closed conducting objects of arbitrary geometry. The FMM reduces the operation count for solving the second-kind integral equation (SKIE) from O(n3) for Gaussian elimination to O(n4/3) per conjugated-gradient iteration, where n is the number of sample points on the boundary of the scatterer. We also present a simple technique for accelerating convergence of the iterative method: "complexifying" k, the wavenumber. This has the effect of bounding the condition number of the discrete system; consequently, the operation count of the entire FMM (all iterations) becomes O(n4/3). We present computational results for moderate values of ka, where a is the characteristic size of the scatterer.

Advisor
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
1992-06-01
Journal title
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Copyright 1992 IEEE. Reprinted from IEEE Transactions on Antennas and Propagation, Volume 40, Issue 6, June 1992, pages 634-641. This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to pubs-permissions@ieee.org. By choosing to view this document, you agree to all provisions of the copyright laws protecting it.
