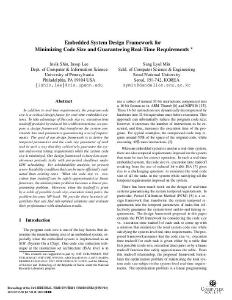

Embedded System Design Framework for Minimizing Code Size and Guaranteeing Real-Time Requirements
In addition to real-time requirements, the program code size is a critical design factor for real-time embedded systems. To take advantage of the code size vs. execution time tradeoff provided by reduced bit-width instructions, we propose a design framework that transforms the system constraints into task parameters guaranteeing a set of requirements. The goal of our design framework is to derive the temporal parameters and the code size parameter of each task in such a way that they collectively guarantee the system end-to-end timing requirements while the system code size is minimized. Our design framework is based on asynchronous periodic tasks with pre-period deadlines under EDF scheduling. For schedulability analysis, we present a new feasibility condition that can be more efficiently evaluated than existing ones. When the code size vs. execution time tradeoff can be safely approximated as linear functions, the minimization problem becomes a linear programming problem. However, when the tradeoff is given by a table of possible (code size, execution time) pairs, the problem becomes NP-hard. We provide three heuristic algorithms that can find sub-optimal solutions and evaluate their performance with simulation results.
Date of presentation
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Copyright 2002 IEEE. Reprinted from <i>Proceedings of the 23rd IEEE Real-Time Systems Symposium 2002 (RTSS 2002)</i>, pages 201-211.<br> Publisher URL: http://ieeexplore.ieee.org/xpl/tocresult.jsp?isNumber=26522&page=1 <br><br> This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to email@example.com. By choosing to view this document, you agree to all provisions of the copyright laws protecting it. <br><p>
