Scalable Store-Load Forwarding via Store Queue Index Prediction

Loading...

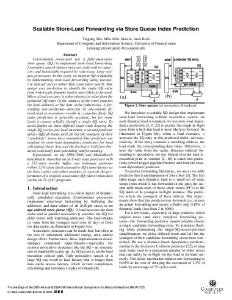

Thumbnail Image
Penn collection
Departmental Papers (CIS)
Degree type
Discipline
Subject
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Contributor
Abstract

Conventional processors use a fully-associative store queue (SQ) to implement store-load forwarding. Associative search latency does not scale well to capacities and bandwidths required by wide-issue, large window processors. In this work, we improve SQ scalability by implementing store-load forwarding using speculative indexed access rather than associative search. Our design uses prediction to identify the single SQ entry from which each dynamic load is most likely to forward. When a load executes, it either obtains its value from the predicted SQ entry (if the address of the entry matches the load address) or the data cache (otherwise). A forwarding mis-prediction — detected by pre-commit filtered load re-execution — results in a pipeline flush. SQ index prediction is generally accurate, but for some loads it cannot reliably identify a single SQ entry. To avoid flushes on these difficult loads while keeping the single-SQ-access-per-load invariant, a second predictor delays difficult loads until all but the youngest of their "candidate" stores have committed. Our predictors are inspired by store-load dependence predictors for load scheduling (Store Sets and the Exclusive Collision Predictor) and unify load scheduling and forwarding. Experiments on the SPEC2000 and MediaBench benchmarks show that on an 8-way issue processor with a 512-entry reorder buffer, our technique performs within 3.3% of an ideal associative SQ (same latency as the data cache) and either matches or exceeds the performance of a realistic associative SQ (slower than data cache) on 31 of 47 programs.

Advisor
Date of presentation
2005-11-01
Conference name
Departmental Papers (CIS)
Conference dates
2023-05-17T00:09:37.000
Conference location
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Copyright 2005 IEEE. Reprinted from Proceedings of the 38th Annual IEEE/ACM International Symposium on Microarchitecture (MICRO’05), pages 1-12. This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to pubs-permissions@ieee.org. By choosing to view this document, you agree to all provisions of the copyright laws protecting it.
