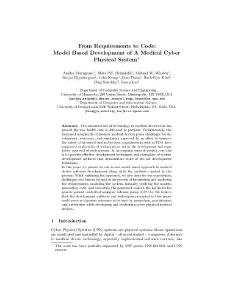

The advanced use of technology in medical devices has improved the way health care is delivered to patients. Unfortunately, the increased complexity of modern medical devices poses challenges for development, assurance, and regulatory approval. In an e ort to improve the safety of advanced medical devices, organizations such as FDA have supported exploration of techniques to aid in the development and regulatory approval of such systems. In an ongoing research project, our aim is to provide effective development techniques and exemplars of system development artifacts that demonstrate state of the art development techniques. In this paper we present an end-to-end model-based approach to medical device software development along with the artifacts created in the process. While outlining the approach, we also describe our experiences, challenges, and lessons learned in the process of formulating and analyzing the requirements, modeling the system, formally verifying the models, generating code, and executing the generated code in the hardware for generic patient controlled analgesic infusion pump (GPCA). We believe that the development artifacts and techniques presented in this paper could serve as a generic reference to be used by researchers, practitioners, and authorities while developing and evaluating cyber physical medical devices.
