An ON–OFF Log Domain Circuit That Recreates Adaptive Filtering in the Retina

Loading...

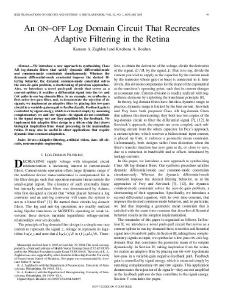

Thumbnail Image
Penn collection
Departmental Papers (BE)
Degree type
Discipline
Subject
Adaptive filtering
artificial vision
class AB circuits
neuromorphic engineering
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Zaghloul, Kareem A.
Contributor
Abstract

We introduce a new approach to synthesizing Class AB log-domain filters that satisfy dynamic differential-mode and common-mode constraints simultaneously. Whereas the dynamic differential-mode constraint imposes the desired filtering behavior, the dynamic common-mode constraint solves the zero-dc-gain problem, a shortcoming of previous approaches. Also, we introduce a novel push–pull circuit that serves as a current-splitter; it rectifies a differential signal into the ON and OFF paths in our log-domain filter. As an example, we synthesize a first-order low-pass filter, and, to demonstrate the rejection of dc signals, we implement an adaptive filter by placing this low-pass circuit in a variable-gain negative-feedback path. Feedback gain is controlled by signal energy, which is extracted simply by summing complementary ON and OFF signals—dc signals do not contribute to the signal energy nor are they amplified by the feedback. We implement this adaptive filter design in a silicon chip that draws biological inspiration from visual processing in the mammalian retina. It may also be useful in other applications that require dynamic time-constant adaptation.

Advisor
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
2005-01-01
Journal title
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Copyright 2005 IEEE. Reprinted from IEEE Transactions on Circuits and Systems--I: Regular Papers, Volume 52, Issue 1, January 2005, pages 99-107. This material is posted here with permission of the IEEE. Such permission of the IEEE does not in any way imply IEEE endorsement of any of the University of Pennsylvania's products or services. Internal or personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution must be obtained from the IEEE by writing to pubs-permissions@ieee.org. By choosing to view this document, you agree to all provisions of the copyright laws protecting it.
