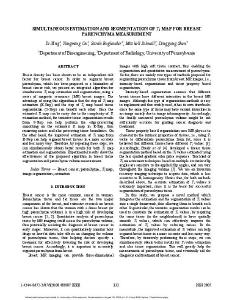

Simultaneous Estimation and Segmentation of T1 Map for Breast Parenchyma Measurement

Loading...
Thumbnail Image
Penn collection
Departmental Papers (BE)
Degree type
Discipline
Subject
Breast cancer
parenchyma
T1 map
image segmentation
estimation
Bioimaging and Biomedical Optics
Funder
Grant number
License
Copyright date
Distributor
Contributor
Abstract

Breast density has been shown to be an independent risk factor for breast cancer. In order to segment breast parenchyma, which has been proposed as a biomarker of breast cancer risk, we present an integrated algorithm for simultaneous T1 map estimation and segmentation, using a series of magnetic resonance (MR) breast images. The advantage of using this algorithm is that the step of T1 map estimation (E-Step) and the step of T1 map based tissue segmentation (S-Step) can benefit each other. Since the estimated T1 map can be noisy due to the complexity of T1 estimation method, the tentative tissue segmentation results from S-Step can help perform the edge-preserving smoothing on the estimated T1 map in E-Step, thus removing noises and also preserving tissue boundaries. On the other hand, the improved estimation of T1 map from E-Step can help segment breast tissues in a more accurate and less noisy way. Therefore, by repeating these steps, we can simultaneously obtain better results for both T1 map estimation and segmentation. Experimental results show the effectiveness of the proposed algorithm in breast tissue segmentation and parenchyma volume measurement.

Advisor
Date of presentation
2007-04-01
Conference name
Departmental Papers (BE)
Conference dates
2023-05-17T03:09:37.000
Conference location
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Ye Xing, Yangming Ou, Sarah Englander, Mitchell D. Schnall, Dinggang Shen: "Simultaneous Estimation and Segmentation of T1 Map for Breast Parenchyma Measurement". IEEE International Symposium on Biomedical Imaging (ISBI) 2007: pp. 332-335 http://ieeexplore.ieee.org/xpls/abs_all.jsp?tp=&arnumber=4193290&isnumber=4193197
