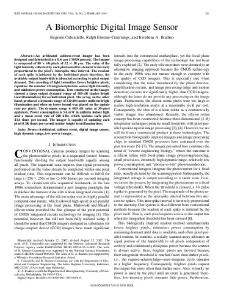

A biomorphic digital image sensor
Penn collection
Degree type
Discipline
Subject
address event
digital image sensor
high dynamic range
low-power imager
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Contributor
Abstract
An arbitrated address-event imager has been designed and fabricated in a 0.6-μm CMOS process. The imager is composed of 80 x 60 pixels of 32 x 30 μm. The value of the light intensity collected by each photosensitive element is inversely proportional to the pixel’s interspike time interval. The readout of each spike is initiated by the individual pixel; therefore, the available output bandwidth is allocated according to pixel output demand. This encoding of light intensities favors brighter pixels, equalizes the number of integrated photons across light intensity, and minimizes power consumption. Tests conducted on the imager showed a large output dynamic range of 180 dB (under bright local illumination) for an individual pixel. The array, on the other hand, produced a dynamic range of 120 dB (under uniform bright illumination and when no lower bound was placed on the update rate per pixel). The dynamic range is 48.9 dB value at 30-pixel updates/s. Power consumption is 3.4 mW in uniform indoor light and a mean event rate of 200 kHz, which updates each pixel 41.6 times per second. The imager is capable of updating each pixel 8.3K times per second (under bright local illumination).
