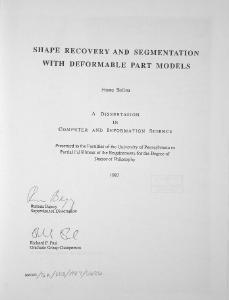

Shape Recovery and Segmentation with Deformable Part Models

Loading...
Thumbnail Image
Degree type
Doctor of Philosophy (PhD)
Graduate group
Computer and Information Science
Discipline
Computer Sciences
Subject
Range images
Part-based modeling
Superquadrics
Least-squares minimization
Funder
Grant number
License
author or copyright holder retaining all copyrights in the submitted work
Copyright date
1987
Distributor
Related resources
Author
Solina, Franc
Contributor
Abstract

A method for recovery of compact volumetric models for shape representation and segmentation in computer vision is introduced. The models are superquadrics with parametric deformations (bending, tapering, and cavity deformation). The input for the model recovery is three-dimensional range points. We define an energy or cost function whose value depends on the distance of points from the model's surface and on the overall size of the model. Model recovery is formulated as a least-squares minimization of the cost function for all range points belonging to a single part. The initial estimate required for minimization is the rough position, orientation and size of the object. During the iterative gradient descent minimization process, all model parameters are adjusted simultaneously, recovering position, orientation, size and shape of the model, such that most of the given range points lie close to the model's surface. Because of the ambiguity of superquadric models, the same shape can be described with different sets of parameters. A specific solution among several acceptable solutions, which are all minima in the parameter space, can be reached by constraining the search to a part of the parameter space. The many shallow local minima in the parameter space are avoided as a solution by using a stochastic technique during minimization. Segmentation is defined as a description of objects or scenes in terms of the adopted shape vocabulary. Model recovery of an object consisting of several parts starts by computing the rough position, orientation and size of the whole object. By allowing a variable number of range points in a model, a model can actively search for a better fit (by compressing itself and expanding) resulting in a subdivision of the object into a model representing the largest part of the object and points belonging to the rest of the scene. Using the same method, the remaining points can be recursively subdivided into parts each represented with a single compact volumetric model. Results using real range data show that the recovered models are stable and that the recovery procedure is fast.

Advisor
Bajcsy, Ruzena
Date of degree
1987
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Recommended citation
