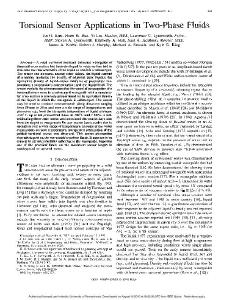

Torsional Sensor Applications in Two-Phase Fluids

Thumbnail Image
Penn collection
Departmental Papers (MEAM)
Degree type
Mechanical Engineering
Grant number
Copyright date
Related resources
Kim, Jin O.
Liu, Yi
Lynnworth, Lawrence C.
Lynnworth, Steven A.
Hall, Kimberly A.
Jacobson, Saul A.
Korba, James. A.
Murphy, Robert J.
Strauch, Michael A.

A solid corrosion-resistant torsional waveguide of diamond cross section has been developed to sense on-line and in real-time the characteristics of the liquid in which it is submerged. The sensor can measure, among other things, the liquid content of a bubbly medium; the density of adjacent pure liquids; the equivalent density of liquid-vapor mixtures or particulate suspensions; a suspension's concentration; and the liquid level. The sensor exploits the phenomenon that the speed of propagation of a torsional stress wave in a submerged waveguide with a noncircular cross section is inversely proportional to the equivalent density of the liquid in which the waveguide is submerged. The sensor may be used to conduct measurements along distances ranging from 20 mm to 20 m and over a wide range of temperatures and pressures, e.g., from the cryogenic temperature of liquid nitrogen, -196°C, up to hot pressurized water at 300°C and 7 MPa. A self-calibrating three-zone sensor and associated electronics have also been developed to compensate for any sensor inaccuracies due to operation over a wide range of temperature. In some of the water experiments at room temperature, unexpected attenuation of the guided torsional waves was observed. This excess attenuation depends in part on the waveguide's surface finish. It appears to be caused by air microbubbles adhering to the waveguide, imposing one of the practical limits on the maximum sensor length in nondegassed or aerated water.

Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
Journal title
Volume number
Issue number
Publisher DOI
Journal Issue
Suggested Citation: Kim, Jin O., et. al. Torsional Sensor Applications in Two-Phase Fluids. Transactions on Ultrasonics, Ferroelectrics, and Frequency Control. Vol. 40(5). p. 563-576. © 1993 IEEE. Personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution to servers or lists, or to reuse any copyrighted component of this work in other works must be obtained from the IEEE.
