Investigation of the Structural and Catalytic Requirements for High-Performance SOFC Anodes Formed by Infiltration of LSCM

Loading...

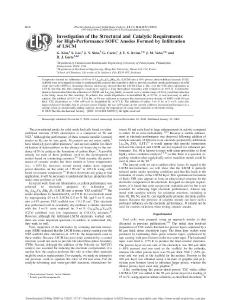

Thumbnail Image
Penn collection
Departmental Papers (CBE)
Degree type
Discipline
Subject
OXIDE FUEL-CELL
METHANE OXIDATION
CERIA
PD
PEROVSKITE
REDUCTION
ZIRCONIA
CATHODES
YSZ
CO2
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Kim, Guntae
Shin, J Y
Corre, G
Irvine, J T S
Contributor
Abstract

Composites formed by infiltration of 45 wt % La0.8Sr0.2Cr0.5Mn0.5O3 (LSCM) into a 65% porous yttria-stabilized zirconia (YSZ) scaffold were investigated in order to understand the reasons this material is able to provide excellent anode performance in solid oxide fuel cells (SOFCs). Scanning electron microscopy showed that the LSCM forms a film over the YSZ after calcination at 1473 K but that this film undergoes cracking to expose a long three-phase boundary after reduction at 1073 K. Coulometric titration demonstrated that the reduction of LSCM and La0.8Sr0.2MnO3 occurred over a similar range of P(O-2) and that reduction is the likely cause for film cracking. To achieve low anode impedances in humidified H-2 at 973 K, it was necessary to add a catalyst. The addition of 0.5-1 wt % Pd, Rh, or Ni was sufficient to increase the maximum power density of SOFCs with 60 mu m thick YSZ electrolytes to >500 mW/cm(2) in humidified H-2 at 973 K. The addition of either 1 wt % Fe or 5 wt % ceria also improved power densities but to a lesser extent. Finally, the use of Pt paste as the current collector increased performance to a similar extent as intentionally adding catalyst, showing the importance of using inert materials in electrode testing.

Advisor
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
2009-01-12
Journal title
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Investigation of the Structural and Catalytic Requirements for High-Performance SOFC Anodes Formed by Infiltration of LSCM G. Kim, S. Lee, J. Y. Shin, G. Corre, J. T. S. Irvine, J. M. Vohs, and R. J. Gorte, Electrochem. Solid-State Lett. 12, B48 (2009), DOI:10.1149/1.3065971 © The Electrochemical Society, Inc. 2009. All rights reserved. Except as provided under U.S. copyright law, this work may not be reproduced, resold, distributed, or modified without the express permission of The Electrochemical Society (ECS). The archival version of this work was published in Electrochem. Solid-State Lett. , Volume 12, Issue 3, pp. B48-B52. Publisher URL: http://dx.doi.org/10.1149/1.3065971
