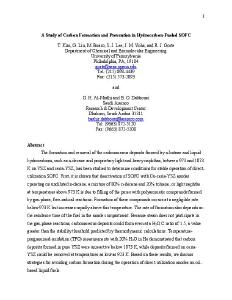

A Study of Carbon Formation and Prevention in Hydrocarbon-Fueled SOFC

Loading...
Thumbnail Image
Penn collection
Departmental Papers (CBE)
Degree type
Discipline
Subject
Solid-oxide fuel cell
Hydrocarbon fuels
Carbon Formation
Gas-phase pyrolysis
Ceria
Yttira-stabilized zirconia
Funder
Grant number
License
Copyright date
Distributor
Related resources
Author
Kim, Taeyoon
Liu, G.
Boaro, Marta
Lee, S.-I.
Al-Madhi, O. H
Dabbousi, B. O.
Contributor
Abstract

The formation and removal of the carbonaceous deposits formed by n-butane and liquid hydrocarbons, such as n-decane and proprietary light and heavy naphthas, between 973 and 1073 K on YSZ and ceria-YSZ, has been studied to determine conditions for stable operation of direct-utilization SOFC. First, it is shown that deactivation of SOFC with Cu-ceria-YSZ anodes operating on undiluted n-decane, a mixture of 80% n-decane and 20% toluene, or light naphtha at temperatures above 973 K is due to filling of the pores with polyaromatic compounds formed by gas-phase, free-radical reactions. Formation of these compounds occurs at a negligible rate below 973 K but increases rapidly above this temperature. The rate of formation also depends on the residence time of the fuel in the anode compartment. Because steam does not participate in the gas-phase reactions, carbonaceous deposits could form even at a H2O:C ratio of 1.5, a value greater than the stability threshold predicted by thermodynamic calculations. Temperature-programmed-oxidation (TPO) measurements with 20% H2O in He demonstrated that carbon deposits formed in pure YSZ were unreactive below 1073 K, while deposits formed on ceria-YSZ could be removed at temperatures as low as 923 K. Based on these results, we discuss strategies for avoiding carbon formation during the operation of direct-utilization anodes on oil-based liquid fuels.

Advisor
Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
2006-04-21
Journal title
Volume number
Issue number
Publisher
Publisher DOI
Journal Issue
Comments
Postprint version. Published in Journal of Power Sources , Volume 155, Issue 2, 2006, pages 231-238. Publisher URL: http://dx.doi.org/10.1016/j.jpowsour.2005.05.001
