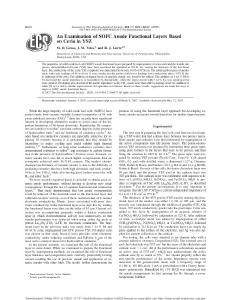

An Examination of SOFC Anode Functional Layers Based on Ceria in YSZ

Thumbnail Image
Penn collection
Departmental Papers (CBE)
Degree type
Biochemical and Biomolecular Engineering
Chemical Engineering
Grant number
Copyright date
Related resources

The properties of solid oxide fuel cell (SOFC) anode functional layers prepared by impregnation of ceria and catalytic metals into porous yttria-stabilized zirconia (YSZ) have been examined for operation at 973 K. By varying the thickness of the functional layer, the conductivity of the ceria-YSZ composite was determined to be only 0.015–0.02 S/cm. The initial performance of anodes made with ceria loadings of 40 or 60 wt % were similar but the anodes with lower loadings lost conductivity above 1073 K due to sintering of the ceria. The addition of dopant levels of catalytic metals was found to be critical. The addition of 1 wt % Pd or Ni decreased the anode impedances in humidified H2 dramatically, while the improvement with 5 wt % Cu was significant but more modest. Pd doping also decreased the anode impedance in dry CH4 much more than did Cu doping; however, addition of either Pd or Cu led to similar improvements for operation in n-butane. Based on these results, suggestions are made for ways to improve SOFC anode functional layers.

Date Range for Data Collection (Start Date)
Date Range for Data Collection (End Date)
Digital Object Identifier
Series name and number
Publication date
Journal title
Volume number
Issue number
Publisher DOI
Journal Issue
Suggested Citation: M.D. Gross, J.M. Vohs and R.J. Gorte. (2007). An Examination of SOFC Anode Functional Layers Based on Ceria in YSZ. Journal of The Electrochemical Society. 154(7) B694-B699. © The Electrochemical Society, Inc. 2007. All rights reserved. Except as provided under U.S. copyright law, this work may not be reproduced, resold, distributed, or modified without the express permission of The Electrochemical Society (ECS). The archival version of this work was published in Journal of the Electrochemical Society, Volume 154, Issue 7, 2007, pages B694-B699. Publisher URL:
